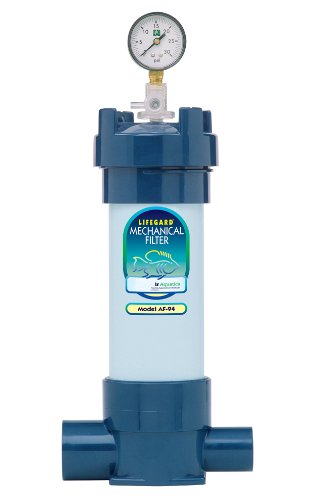

Single Capacity for Aquariums up to 100-gallons. This filter features the Lifegard exclusive combination mechanical and chemical cartridge. Internal carbon chamber has retainer screen to prevent carbon from escaping into system. Carbon can be easily rinsed while inside chamber. Economical replaceable pleats eliminate costly cartridge replacement. Highest quality PVC molded parts. No channeling; 100-percent of water passes through pleats and media within internal chamber.
0-30 PSI/Bar Dial Pressure Gauge indicates when to clean cartridge and manual Air Bleed eliminates unwanted trapped air
Cartridge traps particles from 20 microns down to 5 microns; Inner pleat supports prevent pleats from squeezing shut providing longer filter cycle
Internal chamber holds 3-ounce (86-grams) of Lifegard Pelletized Carbon; Will also hold a variety of chemical or biological filter media
Inlet Port 1-1/4-inch Slip/3/4-inch FPT; Outlet Port 1-inch Slip/3/4-inch FPT; Port size dimensions listed are pipe size; SLIP equal to PVC solvent socket type fittings
All Lifegard Mechanical, Chemical, Heater, and UV Sterilizers include 3/4-inch threaded reducing bushings if threaded installation is desired
